Hammer Crusher

Processing capacity: 5-150m³/h

Feeding size: ≤200-≤350mm

Processible materials: Coal, glass, limestone, granite, sand gravel, sandstone, construction waste, concrete, iron ore, quartz, artificial sand, brick and tile, etc.

Processible materials
  • Basalt Crusher
  • Iron Ore Crusher
  • Quartz Crusher
  • Coal Crusher
  • Granite Crusher
Send us at vip@sinoftm.com

Application of hammer crusher machine

The hammer crusher machine can process the raw material with medium hardness in industries like mining, cement, coal, metallurgy, construction material and road pavement, etc.

Hammer Crusher Material Processing

Take the limestone as an example, our hammer mill crusher can crush the limestone with diameter about 1m into finished product with diameter about 20mm.

Applied materials: coal, granite, basalt, limestone, pebble, cement clinker, quartz stone, iron ore and bauxite, etc.

Hammer Crusher

The birth of coal hammer mill crusher

Along with the social and economic development, the demands for coal are more and more strong among the global markets. The birth of China hammer crusher is inevitable, and the largest feeding size of China hammer crusher is 60mm and its crushing capacity is about 20t/h.

Hammer crusher Working Principle of Dynamic Figure

Advantages of hammer crusher machine

1. The crushing form of hammer crusher machine can be in wet or dry.

2. The rate of finished products with excellent performance is high.

3. The structure design of hammer mill crusher is perfect and the resistance to impact is strong.

4. It is applicable to the stone crushing line or sand making line. Hammer crusher machine can take the place of cone crusher in ore separating line.

5. Hammer crusher price is resonable, saving crushing cost for you!

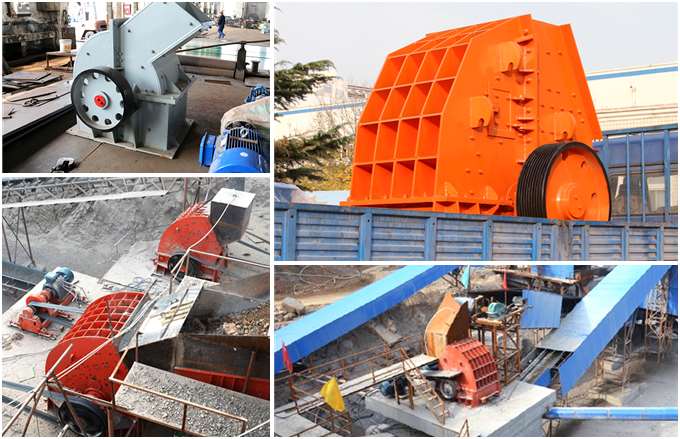

Hammer Crusher Production Site and Delivery Site

For more details or price list, please leave us a message or Email us to vip@sinoftm.com, thank you!

Technical Data

Model
Specification
Feeding
Size
(mm)
Discharging
Size
(mm)
Capacity
(m³/h)
Motor
power
(kw)
Total
weight(t)
Dimensions
(L×W×H)(mm)
PCΦ400×300 ≤200 ≤25 5-10 4P 11 0.8 900×670×860
PCΦ600×400 ≤250 ≤30 10-22 4P 22 2.26 1200×1050×1200
PCΦ800×600 ≤250 ≤35 18-40 6P 55 4.8 1310×1180×1310
PCΦ1000×800 ≤350 ≤35 25-50 8P 75 5.9 1600×1390×1575
PCΦ1000×1000 ≤350 ≤35 30-55 8P 90 8 1800×1590×1775
