600 T/H Jaw Crusher

Feeding size: 1,020mm-1,200mm

Crushing capacity: 600t/h

Processible materials: coal gangue, basalt, cement clinker and all kinds of rock and ores.

Processible materials
  • Granite Crusher
  • Slag Crusher
  • Calcite Crusher
  • Marble Crusher
  • Dolomite Crusher
Send us at vip@sinoftm.com

Brief introduction to 600 t/h jaw crusher

If you want to buy jaw crushers with crushing capacity about 600t/h, types of PE1200×1500 jaw crusher and PE1500×1800 jaw crusher are worth to being recommended.

According to the feeding size, jaw crusher can be divided into three types: Large-size, medium-size and small-size with respective feeding sizes 600mm, 300mm-600mm and 300mm.

600 T/H Jaw Crusher

While the feeding size of PE1200×1500 jaw crusher and PE1500×1800 jaw crusher varies from 1,020mm to 1,200mm, we can call them large-sized jaw crushers in PE series.

Jaw Crusher

Application of 600 t/h jaw crusher plant

600 t/h jaw crushing plant, with large feeding size and strong crushing capacity, is suitable to crush all kinds of large ores and rocks into finished products with medium size. Industries with high output demand like mining, construction, large-sized ore dressing and aggregate, etc all welcome the use of 600 t/h jaw crushing plant.

The support of large-sized crushing line

Ordinary crushing line is composed of vibrating feeder, jaw crusher, impact crusher, vibrating screen and conveyor. While large-sized crushing line needs the participation of 600 t/h jaw crusher plants like the PE1200×1500 jaw crusher and PE1500×1800 jaw crusher, they are premises to get high output. Thus, among the large-sized crushing line, the 600 t/h jaw crushing plant plays the role as a support.

Jaw Crusher Working Principle of Dynamic Figure

Granite crushing and screening line in Norway

Raw material: granite

Capacity: 600t/h

Main equipment: PE1200×1500 jaw crusher, cone crusher, vibrating scree, vibrating feeder and conveyor.

Working period: From March 2014 until now

In Norway, there are a lot of coarse granite. An owner of a large-sized processing enterprise for building stones in Norway, wanting to crush and screen these coarse granite into fine particles, finally bought a 600t/h crushing and screening line from our company in March, 2014. The 600t/h crushing and screening line, with high working efficiency and strong capacity, produces the finished products with high value and demand, so the crushing line owner is quite satisfied and wants to establish long-term cooperation with our company.

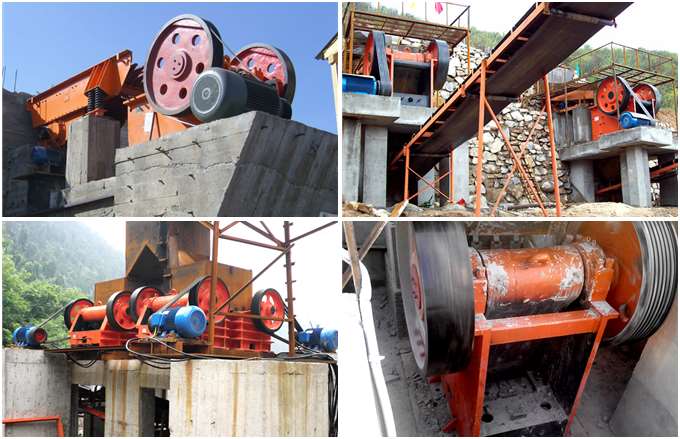

600 T/H Jaw Crusher Production Site

If you have any question about 600 t/h jaw crusher and want to know more information such as price and crushing details, please leave messages on our website or email us, we have professional technicians and engineers to answer your question. looking forward your attention!

Technical Data

Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 4P   5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 4P   7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 4P   11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-20 300 6P   15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 6P   30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 6P   55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 6P   55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-180 250 6P   55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 8P   110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 8P   110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 8P   110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 8P   110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 8P   110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 8P   110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 8P   110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 6P   160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 8P   280-355 139 5160×3660×4248
PE-1600×2100 1600×2100 1500 300-400 1300-2200 160 8P   350-380 150.6 6210×4013×4716
PEX-150×750 150×750 120 18-48 8-25 320 4P   15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 6P   22 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 6P   30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 6P   37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 6P   55 15.6 2720×1950×1600
